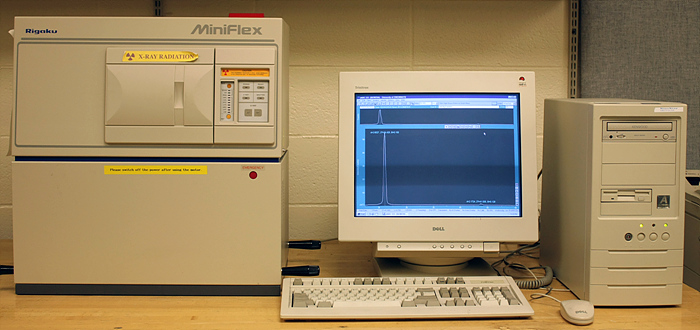

Nanolab has a Rigaku MiniFlex Tabletop XRD
system for our daily use. The Miniflex is a compact X-ray diffraction
system. This precise instrument is a handy analytical tool; and, the
accompanying software which works in a Windows™ environment is the
industry standard. An outstanding cost-to-performance ratio is achieved.
The built-in goniometer is factory aligned and requires no additional
calibration. Start-up and operation of the instrument is extremely
simple; novices can become proficient operators in a short period of
time. Measurement and processing software can be operated on any
conforming Windows PC, making X-ray Diffraction more accessible to
everyone.
Features &
benefits include:
-
SMALL SELF-CONTAINED RADIATION
ENCLOSURE
When the radiation enclosure door is opened, the X-ray shutter
will automatically close. This function completely protects the user
from exposure.
-
INSTRUMENT STATUS DISPLAY
Instrument status is available on demand to monitor the functions
of the components.
-
CONTINUOUSLY VARIABLE SLIT
The Continuously variable slit is linked to the θ-axis, widening
to maintain a constant irradiated area as θ becomes larger. This will
improve the peak-to-background ratio at low 2θ angles as well as
increase the X-ray intensity at high 2 angles. These improvements are
important for the measurement of clay minerals, concrete skeleton
materials, etc.
-
POWERFUL DATA PROCESSING SOFTWARE
» Profile smoothing
» Kα2 removal
» Background subtraction
» Peak search
-

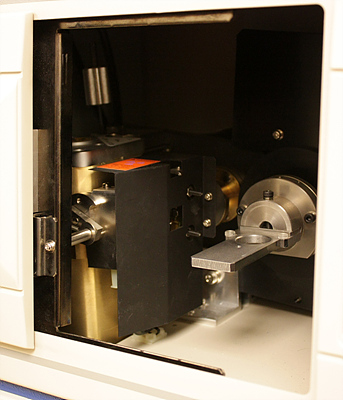

SAMPLE HOLDERS
Two types of holders, for powder and bulk samples, are available for
use with the Miniflex's vertical goniometer.
|
